Acrolink

True Purity

Various manufacturers claim to produce ultra high purity copper; however, different refining processes yield materials that vary greatly in both the composition of impurities and crystalline structure.

Many .999999 (99.9999%) and purer materials are not measured comprehensively. Glow Discharge Mass Spectrometry is an extremely powerful tool for performing ultra-trace elemental analysis, and has been applied to Acrolink's 6N (.9999997) pure copper. The results in the accompanying table demonstrate that Acrolink has achieved an unrivalled standard of purity.

Typical Analysis of Impurities (in parts per million):

Fe	Ni	Si	Ai	S	Ag
0.03	0.003	0.05	0.005	0.05	0.05
Na	K	U	Th	H	O
0.004	<0.006	<0.0002	<0.0003	<0.03	<1.0

The Effect of Impurities

Minute impurities create variations in impedance, inhibiting the ability of a cable to achieve extended frequency response. Responsible for meeting the needs of leading edge computer and aerospace technology, Acrolink has developed a multi-stage process that removes each impurity individually. Applying this to audio they have been able to achieve flat frequency response to 18 GHz in their Mexcel series!

Stress-Free

After the cable core of the 6N-P4030 is formed, the Acrolink Stress-Free process is applied in a clean, oxygen free environment. This imparts permanent self-annealing properties: No matter how often the cable is bent or impacted, it will always return to its original relaxed state (uniform crystalline structure).

Dielectric

A new polymer polyolefin, presently the best material available, has been chosen for the insulator for its extremely low dielectric constant (1/3 of polypropylene and 1/4 of PVC).

Resonance Absorption

Proper absorption of resonance is one of the key factors in determining final sound quality. Acrolink has focused on this issue for many years and developed tremendous expertise. Materials are carefully selected for each individual design in order to achieve perfectly balanced and effective absorption.

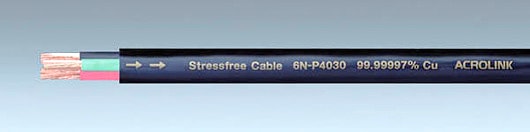

Acrolink 6N-P4030 Specifications

Conductors:
6N Copper, 0.26mm X 100 strands X 2 (red and black)
4N5 copper 0.26mm X 100 strands X 1(green)

Conductor Resistance: 2.9 m/meter
Electrostatic capacitance: 13pF/meter
Maximum current: 50A/VCTF STandard
Length: 30 meters/reel
