Oyaide Schuko

Oyaide Schuko P-079
P-079e

These plugs are not merely high grade. Every possible step has been taken to achieve true "State of the Art". Every one of our products is made under our direct supervision to the highest and strictest standards. Since even minute variations can lead to failure, we carefully choose each part to assure ease of assembly and operation and, especially, safety. Materials are selected for superior sound quality, durability and reliability. To achieve our aim, cost is a secondary consideration. Avoiding unnecessary decoration and complexity, we are proud to deliver these products of value for your listening pleasure.



Pin - Contact Pin
Oyaide Schuko contact pin

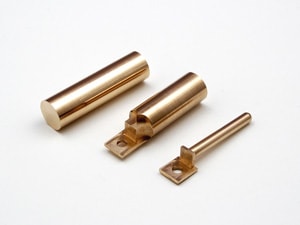

The contact pins are made out of deoxidized phosphorus bronze and machined out of a single piece, for the best possible conductivity.

feedstock is made out of a bolt 14 mm in diameter that weights 70 grams. The machining has to be done with a highly sophisticated CNC lathe, in order to archive the highest precision on this complex shape.


Plating
Oyaide Schuko - plated pins

In - order to improve the sound quality the plating is a very important issue. Therefore our contacts are free of any nickel plating. Instead, we hand polish the metal parts twice. Only by means of this costly process can we achieve a mirror- like surface, and a proper base for the final gold or rhodium plating. This mirror- like finish is a prerequisite for producing clear and vivid sound.

Buffing Process
Oyaide Schuko buffing process Oyaide Schuko buffing process
Oyaide Schuko internal Oyaide Schuko internal
Oyaide Schuko P-037e
Oyaide P-037e
Oyaide Schuko P-046e
Oyaide P-046e
Plating Process

Oyaide P-037e
Oyaide Schuko P-037e

Super thick (1.5 micron) Silver plating is applied directly on the polished surface of the receptacle and blade and is then polished twice again. A final plating of Rhodium (0.3 micron) is applied and polished twice again.

A combination of the metals chosen, precisely determined thicknesses of each layer and and the polishing process determine the overall sonic quality of the P-037e.

Oyaide P-079e
Oyaide Schuko P-079e

Super thick (2.0 micron) 24K Gold is plated directly on the polished

surface of the receptacle and blade which is then polished twice again.

Oyaide P-046e
Oyaide Schuko P-046e

Super thick (1.5 micron) 24K Gold plating is applied directly on the polished surface of the receptacle and blade and is then polished twice again. A final plating of Palladium (0.3 micron) is applied and polished twice again.

The quality and choice of plating materials alters the sound dramatically. Where the Silver/ Rhodium sounds pure and bold, the Gold sounds warm, spacious and luxurious and Gold / Palladium is pure, vivid and extended. Any one of the three is far above standard "audiophile" grade connectors. It's up to you to choose which suits your taste and system most.



Body and Outer Casing

P-037e, P-079e, and P-046e

Body: High density PBT is mixed with 30% glass filler for rigidty, thermal stability and high resonance absorption.

Outer casing: Polycarbonate.

Specifications for Oyaide Schuko P-037e, P-079e, and P-046e
Blade M1e: Beryllium Copper
P-004e: Beryllium Copper
P-037e : Deoxidized Phosphor Bronze
P-079e : Deoxidized Phosphor Bronze
P-046e : Deoxidized Phosphor Bronze
Plating P-037e : Silver (1.5 micron) Rhodium (0.3 micron)
P-079e : 24K Gold (2.0 micron)
P-046e : Gold (1.5 micron) /   Palladium (0.3 micron)
Cable O.D. Range Minimum 6.5 mm / Maximum 17.0 mm
Wire Gauge Maximum 10 gauge
Volt / Amp 250 Volt / 16 Amp
